Canon CR-N700 PTZ 2-Camera Streaming Kit (ATEM)

Canon is known for its color science, making the image (especially skin tones) consistently beautiful. Canon’s dual-pixel autofocus engine is also the envy of the industry, pushing Sony to be the champion of all autofocus engines. And now Canon has pushed all of its power into the PTZ line of cameras which are perfect for churches and event venues that want a more premium, broadcast-quality video system.

This kit includes everything you need to start streaming with remote-controlled 4K PTZ cameras with 15X optical zoom at up to 30 frames per second in 4K, 60fps in 1080.

PTZ cameras allow a single volunteer to control the cameras remotely from a single location via a Joystick controller, a web-based control panel, or even a mobile device.

Note: The ATEM Mini Pro is a 1080P device, so the 4K camera signal will get downsampled to 1080P. However, the increased image quality is unmatched with Canon’s 1.0-inch Type CMOS sensor and 10-bit 4:2:2 image quality.

What’s Included in this Kit?

• Blackmagic Design ATEM Mini Pro
• 2 Canon CR-N700 4K PTZ Camera (15X Zoom)
• 1 PTZOptics G4 Joystick Controller
• 2 PTZ Wall Mount (Ceiling mount available on request)
• 24″ Monitor for Multiview Production Monitoring
• 2 100′ Camera Cable Packages (Longer lengths available via custom quote)
• Power-Over-Ethernet Gigabit Switch
• 1TB SSD Hard Drive for Recording
• Audio Adapters & Cables
• 12 Months of Access to Premium Training Sessions
• NEW! Free Team Access to the Live Streaming Academy

Auto-tracking & Auto Looping are Paid Add-On Apps

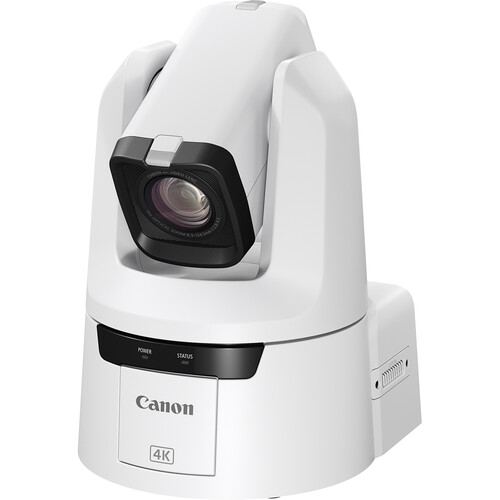

Canon CR-N700 NDI|HX 15x 4K PTZ Camera

An exceptional 4K60P professional PTZ camera with 12G-SDI connectivity and class-leading autofocus with intelligent head detection and eye tracking.

Features

• 4K 60P Image Quality
  Captures exceptional broadcast-level imagery in up to 4K UHD 60P, 4:2:2 10-bit
• 1.0-inch Type CMOS sensor
  Produces incredible depth of field with high sensitivity and low noise, even in low light
• DIGIC DV7 Processor
  Powerful image processing for exceptional results
• 15x Optical and 30x Advanced zoom
  Image stabilized 15x Optical zoom in 4K or up to 30x Advanced zoom in Full HD
• Region of Interest Cropping
  Intelligent cropping of a feed enables a single camera to produce two video feeds up to FHD
• HDR Imagery
  Exceptional 4K HDR imagery for PQ or HLG formats, plus Canon Log 3 and Wide DR
• Dual Pixel CMOS AF with EOS iTR AF X
  Smooth, fast, and accurate autofocus with ‘deep learning’, head detection, eye detection and tracking
• Inbuilt Protocols
  Including NDI|HX*, SRT, FreeD, RTMP/RTMPS, RTP/RTSP, Canon XC and Standard Communication protocol
  * NDI is a trademark or registered trademark of NewTek, Inc. in the United States and other countries
• Flexible connectivity
  A host of connectors such as 12-G-SDI, 3G-SDI, HDMI, Gen lock and Dual XLR audio inputs

Close the distance with unrivalled clarity
Harness the power of a 1.0-type 4K sensor and DIGIC DV7 processor with Dual Pixel AF. A 15x optical zoom (30x in Full HD) captures productions in exceptional detail, even in Night Mode. Stream 4K60P and HDR quality broadcast footage via a wide range of IP protocols.

4K detail for imaging excellence
A 1.0-Type CMOS sensor and DIGIC DV7 processor deliver 4K UHD 60P imagery in up to 4:2:2 10-bit, 12G-SDI and HDMI for broadcast-standard image quality, plus 4K60P over IP.

Class-leading optical precision
The CR-N700’s high-performance lens has a 15x optical zoom (25.5mm – 382.5mm, 35mm equivalent) plus a 30x Advanced Zoom when shooting in Full HD. And when conditions are unstable, Canon’s renowned Image Stabilizer captures optimal footage.

Award-winning Auto Focus technology
Fast, intelligent, and extremely accurate focussing via multiple modes thanks to Canon’s proprietary Dual Pixel CMOS AF technology with advanced EOS iTR AF X.

• EOS iTR AF X
  Deep learning autofocus technology locks onto a subject’s head, even if they turn away.
• Eye Detection AF
  Detects and tracks the subject’s pupil for precise focusing.
• Face Priority/Face Only AF
  Face Priority AF prioritizes the subject’s face, while Face Only AF responds when a face is detected.
• Touch AF
  Select your own focus point on the screen with the Remote Camera Control Application.
• Dual Pixel Focus Guide
  A visual representation showing when a subject is in focus.

Multiple protocols for seamless integration
The CR-N700 features SRT and NDI|HX1 that produce high-quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP are included, along with Canon XC and Standard communication protocols, plus FreeD for integration into virtual productions.

Powerful HDR imagery and low-light capture
Achieve stunning HDR imagery with direct recording into either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match your image with other Canon cameras.

Crop function – single camera, two video feeds
Select and extract a point of interest via a separate feed. The chosen area can then be output as a main or secondary signal and up to two cropped areas can be set in FHD.

Low-Light Mode
Capture footage in near-darkness thanks to IR Mode, which extends the spectrum visible to the camera.

Comprehensive connectivity
Connect flexibly with 12G-SDI, HDMI or IP (PoE++) all supporting 4K60P, as well as professional dual XLR audio inputs. CR-N700 also includes 3G-SDI and GEN-LOCK.

Smooth and precise control
The CR-N700 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.1°/s. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party units.

The ATEM Mini Pro Video Switcher

ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture-in-picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control. ATEM Mini Pro also includes direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. There’s also a multiview with 4 cameras, media, preview and program plus the status of recording, streaming, and audio.

PTZOptics Joystick Keyboard Gen 4

A 4th-Generation joystick supporting Network or Serial Camera Control. Experience the full capabilities by pairing it with PTZOptics or HuddleCamHD cameras.

A Controller for All Production Setups
Introducing the PTZOptics 4th Generation IP Joystick Controller. Compatible with most PTZ cameras operating serial or IP protocol, including Sony, the PT-JOY-G4 is a legacy-friendly controller designed to easily integrate into a wide array of existing production systems, and even allows users to switch between protocols with the touch of a button.

Enhanced Setup Management
A newly added web user interface will decrease your setup time, allowing you to get multiple cameras up and running in as little as five minutes! If you’re using the PT-JOY-G4 for different productions or sets, we’ve got you covered. Import and export settings for specific use cases or production environments.

For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller

Streamlined Production at Your Fingertips
With an expanded LCD screen and a wide range of knobs for fine-tuning, a single camera operator can easily:

Operate cameras in basic, matrix and normal modes Access cameras and quickly recall preset locations
Control white balance, red and blue gain, shutter speed and more!
Use web-based and smartphone app control for added flexibility

A Smart Acquisition for Any Production
Backed by PTZOptics’ 2-year warranty, plus full support from PTZOptics’ technical team, the PT-JOY-G4 is an ideal choice for video production in schools, houses of worship and other broadcast and live streaming scenarios.

The unit comes with a 12V 2A DC International Power Supply and an 8-foot RS-232C cable.

Main Features

• Durable metal housing
• VISCA over IP & Serial control
• PTZOptics Camera On-Screen Display
• control
• Full Pan / Tilt / Zoom camera control
• P/T/Z Speed adjustment on the fly
• Direct exposure & white balance control
• 255 total cameras via network
• 255 camera presets, 9 Quick presets
• Fine-tune zoom control knob
• Fine-tune focus control knob
• PTZOptics Focus lock & unlock
• Large LCD screen with controller status
• Import / Export settings via network
• 2-Year warranty
