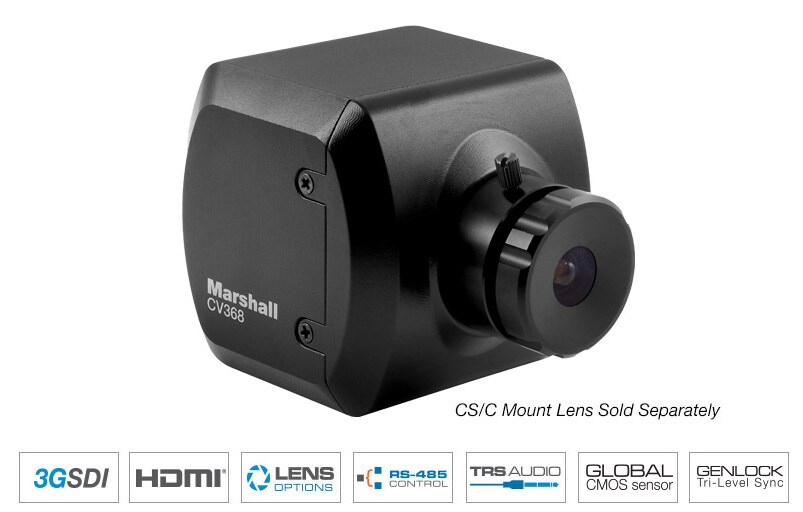

Marshall Electronics CV368 Compact 1080p 3G-SDI/HDMI Camera with Global Shutter & Genlock

Compact HD Camera with Global Shutter and Genlock Sync features. Built around an impressive 1/1.8″ Sony global sensor with 25% larger pixels and flexible CS lens mount (lens sold separately) make this the most capable POV camera in the compact camera lineup.

New Global Shutter CMOS Technology
Global Shutter camera sensors are nothing new to the broadcast proAV industry, however when users are challenged to capture ultra-fast motion within the field-of-view, motion anomalies become more of a challenge – Sony Global Shutter sensors perform better in these conditions as all pixels are exposed (start to finish) simultaneously.

Genlock Tri-Level Sync Feature
Tri-level sync allows multiple cameras to be plugged into HD workflows already in sync (genlock) which allows for seamless transitions between cameras with minimal amount of delay. Tri-level runs at higher frequency which makes the HD60 signal sync more accurate and more seamless.

25% Larger Pixel Size
Larger physical pixel sizes allow for greater accuracy of color and clarity even in low-light applications. The CV368 utilizes a Sony Exmor 1/1.8″ sensor with larger physical pixels to deliver step-up broadcast quality images from a compact camera size.

Durable, Flexible, Powerful

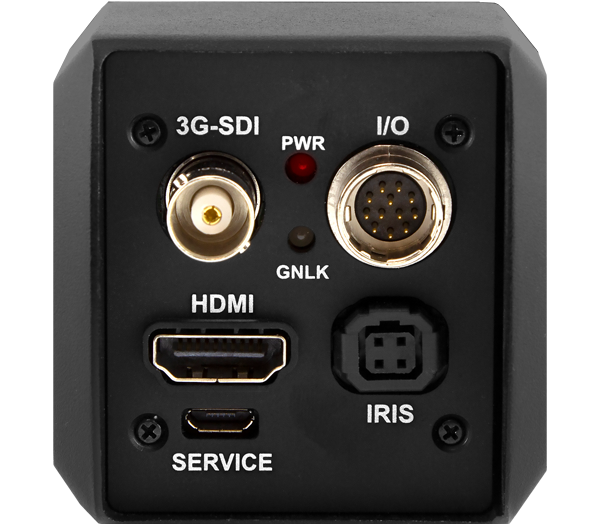

Marshall Compact Cameras are cut from individual aluminum alloy blocks, designed with rear I/O connector protection, solid 1/4″-20 mount type, and flexible interchangeable lenses. Ability to remotely adjust and match a POV camera from a control room that is installed hundreds or thousands of feet away is a powerful tool and comes standard with every Marshall Camera.

Specs:

• Large 1/1.8″ Global Shutter Sensor
• 3.2 Megapixels with 25% larger pixel size
• Simultaneous 3GSDI & HDMI outputs
• Mic/Line Level (2.5V bias), AUDIO stereo embedding up to 48kHz

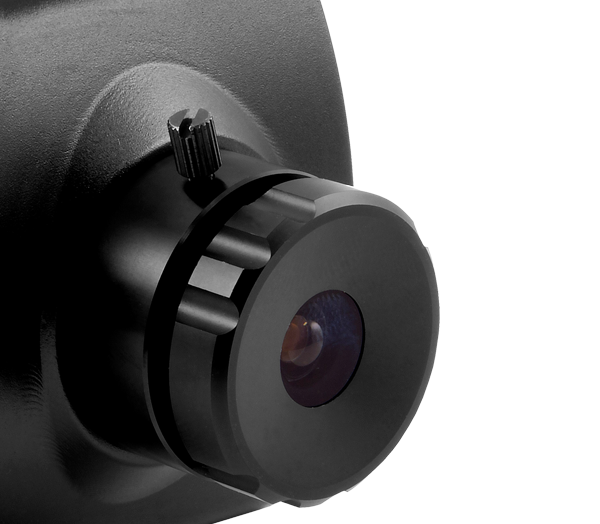

• Flexible CS/C Lens Mount (lens sold separately)
• Tri-Level Sync (Genlock) for faster, more accurate camera switching
• SMPTE 424M (2.97Gbps) – 3GSDI:
  1920x1080p @ 50, 59.94, 60fps
• SMPTE 292M (1.485Gbps) – HDSDI:
  1920x1080p @ 23.97, 24, 25, 29.97, 30fps
  1920x1080i @ 50, 59.94, 60fps
  1280x720p @ 50, 59.94, 60fps
• Image Mirror/Flip, Digital Zoom, Digital Image Stabilizer
• Microphone/Line Level input with 2.5V Mic bias
• Color Matrix feature: Style, Master Level, Master Phase, Color Level, Color Phase
• Environmental: -10°C ~ 50°C
• 12v power supply, can operate 12V+/-10% with a 6 watt draw
