PTZOptics PTZ Joystick Controller Keyboard (4th Generation)

A 4th-Generation joystick supporting Network or Serial Camera Control. Experience the full capabilities by pairing it with PTZOptics or HuddleCamHD cameras.

A Controller for All Production Setups

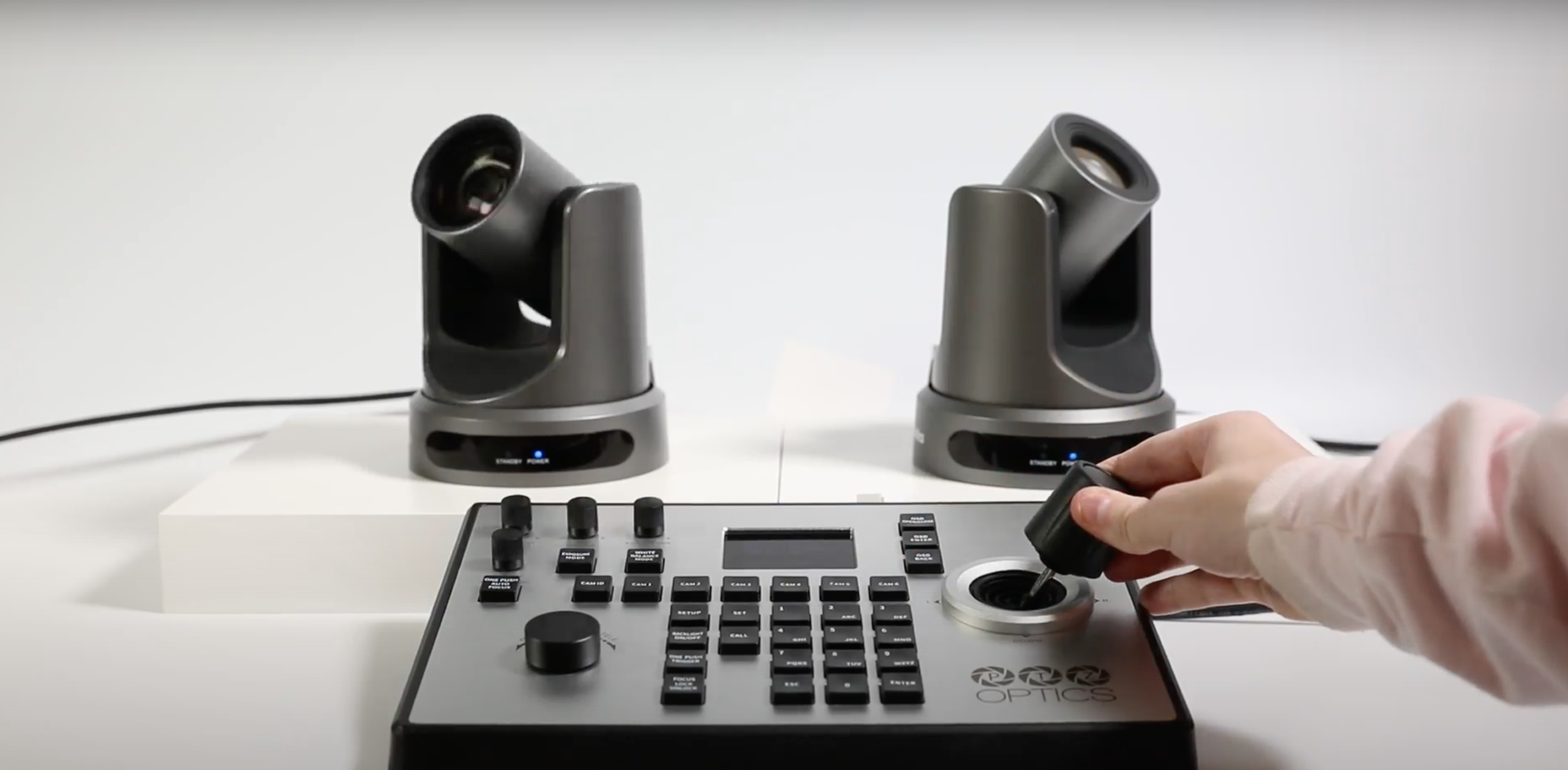

Introducing the PTZOptics 4th Generation IP Joystick Controller. Compatible with most PTZ cameras operating serial or IP protocol, including Sony, the PT-JOY-G4 is a legacy-friendly controller designed to easily integrate into a wide array of existing production systems, and even allows users to switch between protocols with the touch of a button.

Enhanced Setup Management
A newly added web user interface will decrease your setup time, allowing you to get multiple cameras up and running in as little as five minutes! If you’re using the PT-JOY-G4 for different productions or sets, we’ve got you covered. Import and export settings for specific use cases or production environments.

For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller

Streamlined Production at Your Fingertips
With an expanded LCD screen and a wide range of knobs for fine-tuning, a single camera operator can easily:

Operate cameras in basic, matrix, and normal modes Access cameras and quickly recall preset locations
Control white balance, red and blue gain, shutter speed, and more!
Use web-based and smartphone app control for added flexibility

A Smart Acquisition for Any Production
Backed by PTZOptics’ 2-year warranty, plus full support from PTZOptics’ technical team, the PT-JOY-G4 is an ideal choice for video production in schools, houses of worship and other broadcast and live streaming scenarios.

The unit comes with a 12V 2A DC International Power Supply and an 8-foot RS-232C cable.

Main Features

• Durable metal housing
• VISCA over IP & Serial control
• PTZOptics Camera On Screen Display
• Control Full Pan / Tilt / Zoom camera control
• P/T/Z Speed adjustment on the fly
• Direct exposure & white balance control
• 255 total cameras via the network
• 255 camera presets, 9 Quick presets
• Fine-tune zoom control knob
• Fine-tune focus control knob
• PTZOptics Focus lock & unlock
• Large LCD screen with controller status
• Import / Export settings via network

Technical Specifications

• Connections: RS-232, RS-485, RS-422, RJ-45
• Max Cameras:
  255 cameras via network
  7 cameras via serial VISCA
• Recommended Max Distance:
  RS-232 / RS-422: 50 ft (15m)
  RS-485: 3,937 ft (1200m)
  Ethernet: 328 ft (100m)
• Baud rate: 1200 ~ 19200 bps

Operation Specifications

• Power: 6W (12VDC) / PoE (802.3af)
• Working Temp: 14° F ~ 122° F (-10° C ~ +50° C)
• Working Humidity: 10% ~ 90% (non-condensation)
• Weight: 4.45 lbs (2.02 kg)
• Dimensions (in.): 11.938 W x 9.25 D x 4.25 H
• Dimensions (mm.): 303.23 W x 234.95 D x 107.95 H
