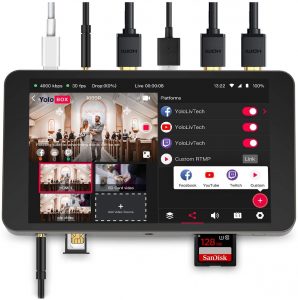

Yolobox by Yolo Liv

$999.00

The Yolobox is a smart multi-camera live streaming studio, encoder, switcher, recorder, and monitor all-in-one for direct streaming to Facebook, YouTube, Twitch, and any custom RTMP server.

,

The Yolobox is a streaming setup all-in-one. This small screen is a monitor, a video switcher with up to 3 camera inputs, a producer allowing videos, overlays and scoreboards, as well as an encoder for direct streaming to Facebook, YouTube, Twitch, and any custom RTMP server.

Introducing the Yolobox

The Yolobox is a smart multi-camera live streaming studio, encoder, switcher, recorder, and monitor all-in-one.

Touch Screen Live Production
With encoder, switcher, monitor, and record built-in one, YoloBox is a studio and play device which allows you to do Full HD Live Stream, Multi-camera Production, Picture in Picture, Watermarks, and many more.

Tap to Start Your Full HD Live Stream
YoloBox helps you start live broadcasting events with unprecedented scale and effectiveness

Cross Platforms Streaming
Stream your live event to three destinations simultaneously, seamless integration with major platforms. compatible con Facebook, Youtube, TwiLive(Twitter) and RTMPs

Multi-Camera Capture
Switch up to 5 video sources simultaneously

Input/Output
Independent Audio Input/Output

Picture in Picture
Various templates for your specific need

Layers
Add Custom Graphic Layers

Compatible with More Devices
YoloBox can acquire media content from:

  • DSLR
  • Drone
  • DV
  • GoPro
  • USB Camera
  • APPLE products
  • Android product
  • SD card

Stream over Wi-Fi, LTE or Ethernet
WiFi:2.4G/5G, Support 802.11a/b/g/n/ac
4G Network:LTE-FDD B2/4/5/7/12/13/17/25/26,LTE-TDD B41
SIM Card Size:Standard SIM Card

  • HDMI IN: Video input
  • USB: Video input
  • HDMI OUT: Video output
  • Ethernet: Connect to Internet by Ethernet cable
  • AUDIO IN: Link with microphone
  • TYPE-C: Power connector
  • AUDIO OUT: Link with earphone for sound monitor
  • SIM: Insert SIM Card to get into Internet
  • HOTSHOE: Fix YoloBox with camera
  • SD: Insert SIM Card for video storage
  • Power Button: Turn on and turn off



Dimensions and Weight

  • Length:185mm
  • Width:107mm
  • Height:19.5mm
  • Weight:480g

Encoded Format

  • Video Encoded Format:H.264
  • Audio Encoded Format:AAC (48k)
  • Video Recorded format:MP4
  • Audio Input Format:32kHz, 44.1kHz, 48kHz, 16-bit
  • Video Input Format:1080i/ 720p/ 1080p
  • Video Recorded Resolution:Up to 1080p:60fps
  • Live Broadcast Resolution:540P/720P/1080P

Video Storage

  • Storage Card Type:SD Card
  • Storage Card Capacity:Expanded to 128G

Network Connection

  • WiFi:2.4G/5G, Support 802.11a/b/g/n/ac
  • 4G Network:LTE-FDD B2/4/5/7/12/13/17/25/26,LTE-TDD B41
  • SIM Card Size:Standard SIM Card

Power

  • Power Interface:Type C, Quick Charge 3.0
  • Battery Capacity:3.7V/5700mAh

Transmission

  • Network Protocol:RTMP

Working Environment

  • Operating Temperature:-10℃-40℃
  • Storage Temperature:5℃-40℃
